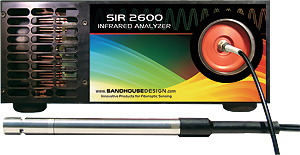

海洋光学推出的SIR扫描式中红外光谱仪将为您提供基于光纤数据采集，运行持久而且性能可靠的新型红外光谱仪。
这款创新的红外光谱仪适用与精确的化学过程监控，可以得到准确的数据和可重复的实验结果。SIR扫描式红外光谱仪的特点是具有USB2.0接口，能够快速地传送数据。此外，操作软件可以控制SIR光谱仪的所有功能和数据分析。
SIR红外光纤光谱仪的光谱范围覆盖1um到12um，配不同的探测器(InGaAs,InAs,MCT, Pyro-Electric, Si)，它有多种波长范围选择。
|
SIR-2600 |
SIR-3400 |
SIR-5000 |
SIR-6500 |
| Range: |
0.9-2.6 µm |
1-3.4 µm |
2-5 µm |
3.0-6.5 µm |
| Detector: |
Extended range InGaAs with 2 stage cooler |
InAs with 3 stage cooler |
MCT Photovoltaic with 3 stage cooler |
MCT Photovoltaic with 3 stage cooler |
| Diffraction grating: |
600 lines |
300 lines |
300 lines |
150 lines |
| Optical design: |
-- Czerny-Turner F3 -- |
| Slits available: |
-- 10 µm, 50 µm, 100 µm, 200 µm, 500 µm -- |
| Optical input: |
-- SMA-905/906 with optional lensed input -- |
| Analog resolution: |
-- 24-bit, 16,777,216 counts -- |
| Triggering options: |
-- Internal and external synchronizational -- |
| Grating steps in range: |
70,200 |
45,000 |
16,800 |
39,600 |
20,000 |
| Resolution based on optical slits: |
|
|
|
|
|
10 µm |
0.1 nm |
.22 nm |
.22 nm |
0.5 nm |
|
50 µm |
0.4 nm |
1.1 nm |
1.2 nm |
2.8 nm |
|
100 µm |
0.7 nm |
2.2 nm |
2.2 nm |
4.5 nm |
|
200 µm |
1.6 nm |
5.0 nm |
5.0 nm |
9.1 nm |
|
500 µm |
4.0 nm |
11 nm |
11 nm |
23 nm |
|
